Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance
Disconnect connector X16 from the PCB
Measurement:

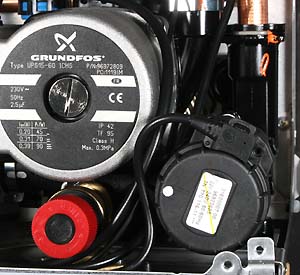

Measure the resistance of the diverter motor and harness at the connector X16.
Motor in HW position (pin out)
Motor in CH position (pin in)
Motor in HW position (pin out)
| Connections | Approximate Resistance in Ohms | 3 - 5 | 8.2 Kohms |
| 3 - 4 | Open Circuit |
Motor in CH position (pin in)
| Connections | Approximate Resistance in Ohms | 3 - 5 | Open Circuit |
| 3 - 4 | 8.3 Kohms |
Isolate as per TOPs P4
and refit as necessary
