Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

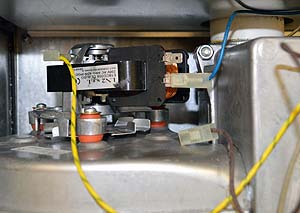

Remove the wires from the fan assembly
Measurement:
Test 1:
Measure the resistance between the live and neutral terminals of the fan assembly.
Resistance should be approximately as per Table 1.
Test 2:
Measure between the live terminal of the fan assembly and a suitable earth.
Expect a resistance of 1 Mohm or greater.
Are the resistances measured as expected?
Measure the resistance between the live and neutral terminals of the fan assembly.
Resistance should be approximately as per Table 1.
Test 2:
Measure between the live terminal of the fan assembly and a suitable earth.
Expect a resistance of 1 Mohm or greater.
Are the resistances measured as expected?

Isolate as per TOPs P4
and refit as necessary
