Set Appliance State:

Gas Off
Set Multimeter to Resistance Set meter to measure resistance
Isolate Mains Power to appliance as per TOPs P4

Measurement:

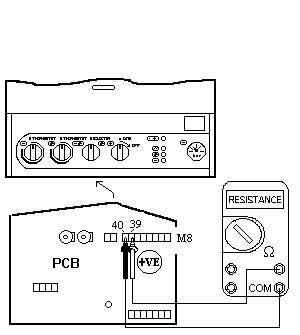

Resistance across connector M8 connection 39 (Red wire) and connection 40 (Red wire) on the main PCB open circuit.
Operate Primary Flow Microswitch by hand and repeat test.
Resistance is short circuit.
