Set Appliance State:
Mains Power Off
Gas Off
Selector Switch in HW position.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

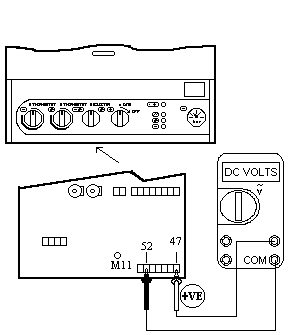

Measure Voltage across connector M11 connection 52
(Red wire) and connection 47 (Black wire) on the main PCB.
(Red wire) and connection 47 (Black wire) on the main PCB.

Isolate as per TOPs P4
and refit as necessary
