Set Appliance State:
Gas Off
Set Multimeter to Resistance
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Gain Access to PCB as required (use insulation mat as necessary)
Gain Access to PCB as required (use insulation mat as necessary)
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

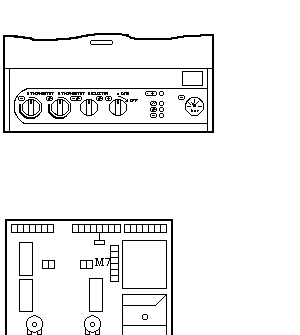

With the connector M7 attached to the PCB, measure the resistance between the two White wires.
Expect short circuit or zero resistance.
Expect short circuit or zero resistance.
