Set Appliance State:
Mains Power Off
Gas Off
Turn Hot Water Tap On
Selector Switch in HW position.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

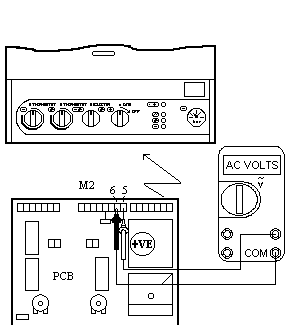

Is there Mains Voltage across connector M2 connection 5 (Blue wire) and connection 6 (Brown wire) on the main PCB?

Isolate as per TOPs P4
and refit as necessary
