Set Appliance State:
Mains Power Off
Gas Off
Selector Switch in HW position.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Depress the Gas Valve Control Knob.

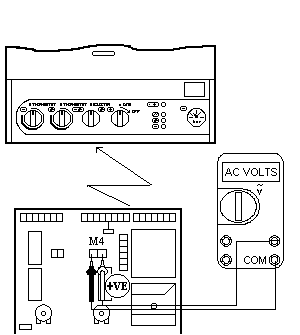

Is there Mains Voltage across connector M4 connection 21 (Brown wire) and connection 20 (Blue wire) on the main PCB?
Is there Mains Voltage across connector M4 connection 21 (Brown wire) and connection 20 (Blue wire) on the main PCB?

Isolate as per TOPs P4
and refit as necessary
