Set Appliance State:
Mains Power Off
Gas Off
Selector Switch in OFF position.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

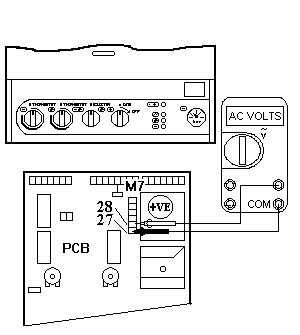

Measure Voltage across connector M7 connection 27
(Brown wire) and connection 28 (Blue wire) on the main PCB.
(Brown wire) and connection 28 (Blue wire) on the main PCB.

Isolate as per TOPs P4
and refit as necessary
