Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Selector Switch in CH & HW position.
CH Thermostat to Max.
CH Thermostat to Max.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Run the Central Heating for approximately two minutes and then remove the heating demand.

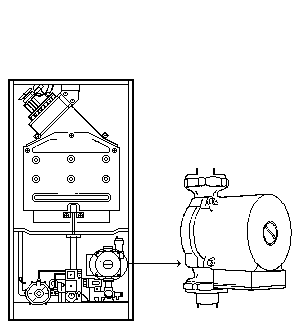

Does the Water Pump Overrun?
Note:
Do not take noise or vibration as indication of pump running.
Does the Water Pump Overrun?
Note:
Do not take noise or vibration as indication of pump running.
Isolate as per TOPs P4
and refit as necessary
