Set Appliance State:
Mains Power Off
Selector Switch in HW position.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

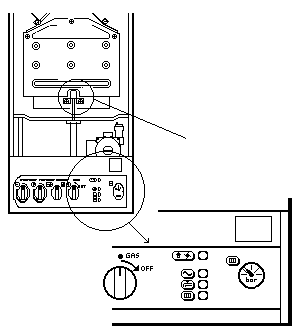

Depress the Gas Valve Control Knob for at least 20 seconds
(It takes approximately 20 seconds for gas to be available at the Pilot Burner).
Does Pilot ignite?
(It takes approximately 20 seconds for gas to be available at the Pilot Burner).
Does Pilot ignite?
