Set Appliance State:
Mains Power Off
Selector Switch in HW position.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

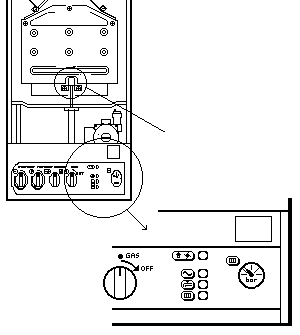

Depress the Gas Valve Control Knob for at least 20 seconds to ignite Pilot.
Once Pilot is alight continue to depress Gas Control Valve Knob for a further 20 - 30 seconds and then release.
Does Pilot remain alight?
Once Pilot is alight continue to depress Gas Control Valve Knob for a further 20 - 30 seconds and then release.
Does Pilot remain alight?
