Adjust, Service, Repair or Replace as necessary
Isolate Mains Power to appliance as per TOPs P4
Isolate Water and Gas as appropriate

Location:

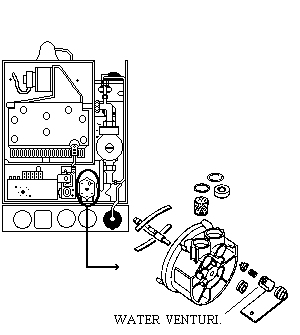

The Water Venturi is an integral part of the Pressure Sensor it is located behind the Cover Plate.
Upon completion of the fault diagnostics carry out final electrical safety tests and checks as per TOPs (C6).
Part Number: GC343469


Refer to ADAPT for further information.
