Adjust, Service, Repair or Replace as necessary
Isolate Water and Gas as appropriate
Location:

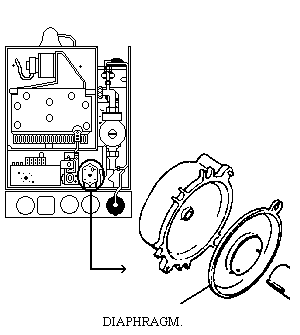

The Diaphragm is an integral part of the Pressure Sensor which is located within the Diverter Valve.
| Isolate Mains Power to appliance as per TOPs P4 |
Location:
Upon completion of the fault diagnostics carry out final electrical safety tests and checks as per TOPs (C6).
Part Number: GCE86454
Refer to ADAPT for further information.
