Set Appliance State:
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Purge Switch in NORMAL position
HW Switch in OFF position
CH Switch in CH Continuous position
CH Potentiometer set to maximum

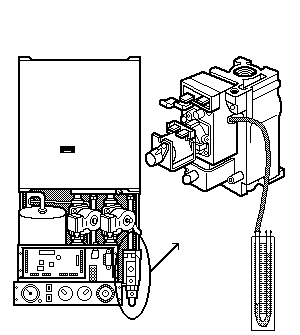

Attach a U-gauge to the gas valve outlet pressure test point
Purge Switch in NORMAL position
HW Switch in OFF position
CH Switch in CH Continuous position
CH Potentiometer set to maximum
Attach a U-gauge to the gas valve outlet pressure test point
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Allow the Fan to operate and the Pilot to ignite.
A positive burner gas pressure should be observed on the U-gauge.
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
A positive burner gas pressure should be observed on the U-gauge.
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
Isolate as per TOPs P4
and refit as necessary
