Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Disconnect the Main PCB Connector PL5 from the PCB
Disconnect the Main PCB Connector PL5 from the PCB
Measurement:

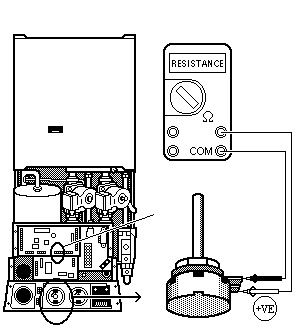

Measure the resistance between the two Orange wires on the HW Potentiometer.
With the Potentiometer turned down to position 1 a reading of approximately 10 K ohms should be obtained.
As the Potentiometer setting is increased the resistance should reduce.
A reading of approximately 1 ohm should be obtained once the Potentiometer is increased to its maximum setting of 8.
Replace connector after test.
With the Potentiometer turned down to position 1 a reading of approximately 10 K ohms should be obtained.
As the Potentiometer setting is increased the resistance should reduce.
A reading of approximately 1 ohm should be obtained once the Potentiometer is increased to its maximum setting of 8.
Replace connector after test.
Isolate as per TOPs P4
and refit as necessary
