G.C. Number 47 494 02
From serial number 797052

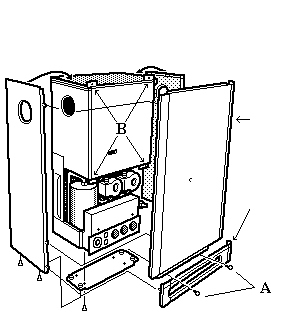

Case removal
Pull off the facia cover.
Undo the two screws (A) and pull off front panel. Keep these two decorative items safe from damage.
Remove the inner case front 4 screws (B) remove inner case.
Note
When power is turned off and then on again the appliance control board will ignore any demands for heat for approx 30 seconds.
