RESISTANCE MODULATING SOLENOID
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance

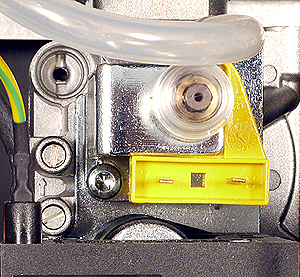

Remove the black leads from the modulating solenoid
Measurement:
Measure the resistance across the modulating solenoid. (Resistance should be approximately 25-35 Ohms.)
RESISTANCE ACCEPTABLE
RESISTANCE NOT ACCEPTABLE
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
