CASE REMOVAL

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

wc greenstar highflow erp outer case.gif

wc greenstar highflow erp inner case.gif

wc greenstar highflow erp pcb inner case.gif

wc greenstar highflow erp combustion inner case.gif

1. Grip the outer sides of the
front panel (A) pull and lift
away from retaining lugs.
Note. If required, top
panel (B) can be removed,
remove 2x internal screws,
grip the outer sides pull
upwards and lift away.

2. Remove screw (C) to swing control panel (D) outwards to its full extent.

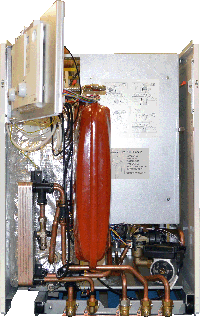

3. Pull clip (E) outwards to release expansion vessel (F), swing expansion vessel outwards.

            B
     (see note)
2x internal screws
            A

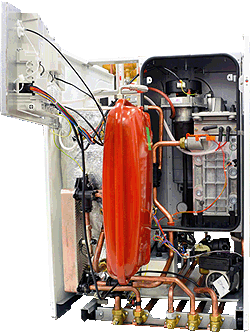

4. Remove four screws (G) to remove the inner case cover.
