Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
CH Temperature Control to MAX

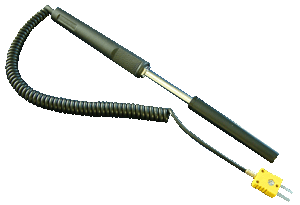

Place temperature probe in flue gas test point, ensure it is fitted securely to prevent any release of flue gases.
Place temperature probe in flue gas test point, ensure it is fitted securely to prevent any release of flue gases.
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance as necessary.
Allow boiler to complete its self check.
Monitor the temperature as the appliance operates for heating.
When the boiler shuts down is the flue gas temperature approximately 95°C or higher?
Allow boiler to complete its self check.
Monitor the temperature as the appliance operates for heating.
When the boiler shuts down is the flue gas temperature approximately 95°C or higher?
