Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance
Gain access to PCB (use Insulation Mat as required)

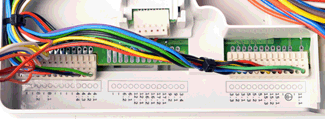

Disconnect connector X6 from the PCB
Disconnect connector X6 from the PCB
Measurement:
Measure the resistance between the white wires on X6, marked 16.1 and 16.2.

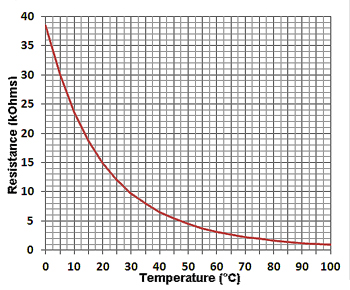

The resistance should conform approximately to the table below:
The resistance should conform approximately to the table below:
Isolate as per TOPs P4
and refit as necessary
