Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap ON
DHW Temperature Control to MAX
DHW Temperature Control to MAX
Unclip Diverter Valve head from the body and leave in a safe position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Place boiler in service mode. CLICK HERE FOR INSTRUCTIONS

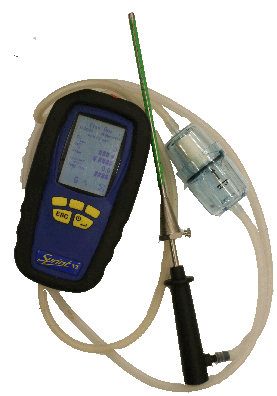

Test 1. Turn the CH control knob to MAXIMUM and measure the CO2 with the appliance operating at MAXIMUM output.
Readings should be within the parameters outlined in the manufacturers instructions.
Test 2. Turn the CH control knob to MINIMUM and measure the CO2 with the appliance operating at MINIMUM output.
Readings should be within the parameters outlined in the manufacturers instructions.
Note:
Refit diverter valve head to body after test.
Test 1. Turn the CH control knob to MAXIMUM and measure the CO2 with the appliance operating at MAXIMUM output.
Readings should be within the parameters outlined in the manufacturers instructions.
Test 2. Turn the CH control knob to MINIMUM and measure the CO2 with the appliance operating at MINIMUM output.
Readings should be within the parameters outlined in the manufacturers instructions.
Note:
Refit diverter valve head to body after test.
