Observation:
This appliance has the facility to turn the blue LED off.
To check blue LED has not been turned off, follow procedure below.
Note.
It may take a couple of attempts to carry out this procedure correctly.

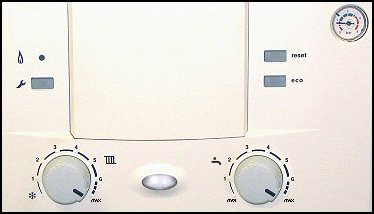

1. Press the "SPANNER" button for approx 15 seconds (spanner button should illuminate).
2. Press "ECO" button for 10 seconds.
3. Repress "SPANNER" button until spanner button light goes out.
4. The Blue LED should now be illuminated CLICK HERE
5. Blue LED still not illuminated follow below.
Tests so far indicate that the blue LED on the PCB is faulty, this LED is passive and does not affect the operation of the appliance.
Choose an option from below.
CONTINUE WITH DIAGNOSIS (RECOMMENDED) - CLICK HERE
REPLACE PCB FOR FAULTY LED - CLICK HERE
