Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Volts
Gain access to PCB (use Insulation Mat as required)
Disconnect plug from diverter valve and make safe
Disconnect plug from diverter valve and make safe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Reset appliance as necessary.
Test 1:

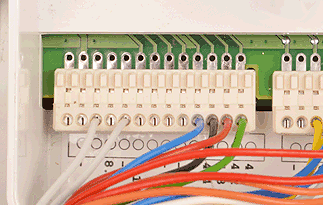

Measure the voltage across the pins marked 4.1 and 4.4 on X7.
Test 2:
Measure the voltage across the pins marked 4.2 and 4.3 on X7.
Voltage on both tests should be approximately 20V AC but
will be varying by up to 5V AC constantly during the test.
Note:
Voltages will only be present for approximately 15 seconds from when power is turned on to the appliance or the appliance is reset, repeat the test as necessary to ensure correct measurements.
If you will not be able to test the PCB within 15 seconds of turning the mains power on click here for an alternative test.
Test 1:
Measure the voltage across the pins marked 4.1 and 4.4 on X7.
Test 2:
Measure the voltage across the pins marked 4.2 and 4.3 on X7.
Voltage on both tests should be approximately 20V AC but
will be varying by up to 5V AC constantly during the test.
Note:
Voltages will only be present for approximately 15 seconds from when power is turned on to the appliance or the appliance is reset, repeat the test as necessary to ensure correct measurements.
If you will not be able to test the PCB within 15 seconds of turning the mains power on click here for an alternative test.
Isolate as per TOPs P4
and refit as necessary
