Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On

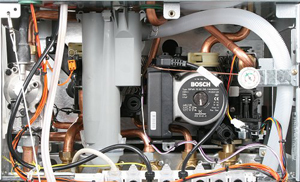

Attach temperature probes as indicated by the red arrows
DHW thermostat to MAX
DHW thermostat to MAX
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Allow the burner to ignite and appliance to run for at least 1 minute.
With the appliance still running measure the temperature differential across the plate heat exchanger.
Expect approximately 11°C-20°C
With the appliance still running measure the temperature differential across the plate heat exchanger.
Expect approximately 11°C-20°C
