INFORMATION FAN PCB REMOVAL

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Remove air intake housing and fan assembly
(2x screws at top and clip at bottom,
refer to ADAPT for further information)

wc greenstar cdi h81146 fan and housing.gif

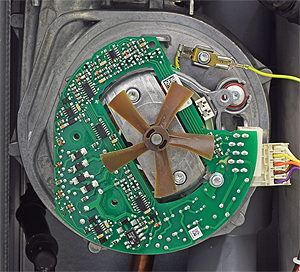

wc greenstar junior r00638 fan pcb in situ with impeller.jpg

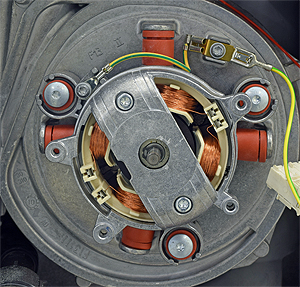

wc greenstar junior h81146 fan motor.jpg

Remove 3 Torx screws and pull left hand side of fan forwards to remove cover

Use the metal part of the fan to gently prise the impellor off the spindle of the fan.
Note:
Impellor may be very stiff, if lubricant is used take care not to damage the fan motor windings behind it.

Remove 1 Torx screw securing the PCB to the fan then gently lift and remove the PCB from the fan.
