XSol Diagnostic System

PRIMARY SENSOR

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove orange wires from primary sensor
Ensure primary heat exchanger is below 60° C

Measurement:

Measure resistance across the exposed sensor terminals.

wc greenstar cdi inner top.jpg

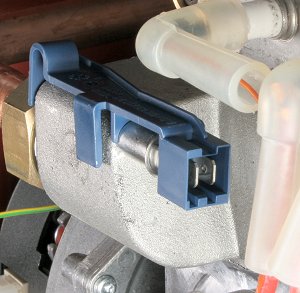

wc greenstar cdi e74536 thr (primary) in situ.jpg



Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	24.0kΩ - 41.0kΩ
10°C to 20°C	15.0kΩ - 24.0kΩ
20°C to 30°C	9.6kΩ - 15.0kΩ
30°C to 40°C	6.3kΩ - 9.6kΩ
40°C to 50°C	4.3kΩ - 6.3kΩ
50°C to 60°C	2.9kΩ - 4.3kΩ
60°C to 70°C	2.1kΩ - 2.9kΩ
70°C to 80°C	1.5kΩ - 2.1kΩ
80°C to 90°C	1.1kΩ - 1.5kΩ
90°C to 100°C	800Ω - 1.1kΩ

Note: Clicking on the resistance table will switch between table and graph view.
