Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Observation:

Test 1:
With the hot tap turned off observe the spindle it should be fully retracted.
Test 2:
Turn hot tap ON.
The spindle should fully extend.
Does the spindle retract and extend correctly?

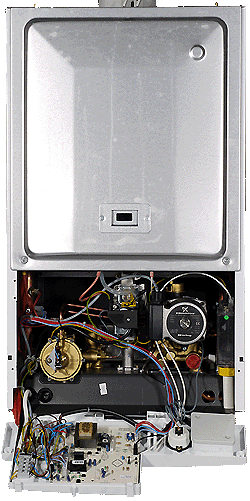

Note: Microswitch removed in picture for
clarity but may remain connected for this test.
