Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Volts
Turn Hot Water Tap On
Gain access to PCB (use Insulation Mat as required)
Selector switch to OFF position
CH temperature selector to minimum
DHW temperature selector to maximum
Selector switch to OFF position
CH temperature selector to minimum
DHW temperature selector to maximum
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Selector switch to DHW position.

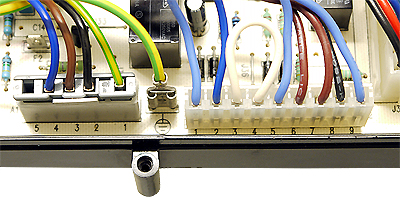

Measure voltage between pins 5 and 7
at connector A2 on the PCB.
Is mains voltage present?
Note:
The mains voltage should be present for greater than 5 seconds, if the voltage is not present for at least 5 seconds then select the "mains voltage absent" outcome below.
Measure voltage between pins 5 and 7
at connector A2 on the PCB.
Is mains voltage present?
Note:
The mains voltage should be present for greater than 5 seconds, if the voltage is not present for at least 5 seconds then select the "mains voltage absent" outcome below.
Isolate as per TOPs P4
and refit as necessary
