Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Gain access to PCB (use Insulation Mat as required)

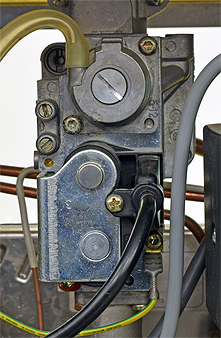

Attach U-gauge to burner pressure test point
Turn potentiometer marked P4 MAX fully anticlockwise
Attach U-gauge to burner pressure test point
Turn potentiometer marked P4 MAX fully anticlockwise
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
If boiler does not react to CH demand select that option
below, otherwise allow burner to ignite and establish.
Once burner has established (sparking ceased) burner
should drop to minimum rate, 2.5mb +/-0.2mb (NG).
Is the minimum burner pressure correct?
Turn P4 back fully clockwise once test is complete.
Notes:
1. Minimum Propane: 6.4mb. Minimum Butane: 5.3mb
2. Manufacturer instructions provide a different method of measuring minimum rate.
This test is preferred by the lab as it reduces the chance of electrical contact.
3. When pressure gauge is removed pressure test point should be tightened and checked for gas soundness.
below, otherwise allow burner to ignite and establish.
Once burner has established (sparking ceased) burner
should drop to minimum rate, 2.5mb +/-0.2mb (NG).
Is the minimum burner pressure correct?
Turn P4 back fully clockwise once test is complete.
Notes:
1. Minimum Propane: 6.4mb. Minimum Butane: 5.3mb
2. Manufacturer instructions provide a different method of measuring minimum rate.
This test is preferred by the lab as it reduces the chance of electrical contact.
3. When pressure gauge is removed pressure test point should be tightened and checked for gas soundness.
