INFORMATION CASE REMOVAL

None

vk compact 25a din case off display up small.gif

vk compact 25a din comb off display up small.gif

vk compact 25a din comb off pcb showing small.gif

locate and unscrew the 2 screws from the underside of the boiler that secure the outer casing, lift the casing upward to disengage it from the top locating hooks.

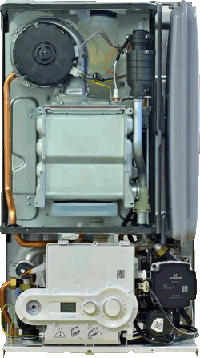

Unscrew the 4 screws securing the front combustion cover & remove.

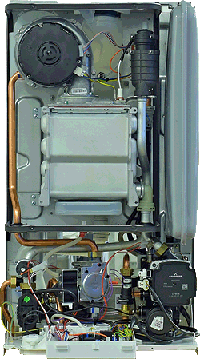

Unscrew the 1 screw securing the PCB & lower down, if required release 2 clips & remove cover for access to the PCB.

Clips

Screw

Note: If pump is on the left hand side you are working on the normal version not the DIN - close model and reopen XSol using the other version.
