Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to PCB (use Insulation Mat as required)
Selector switch set to OFF
Selector switch set to OFF
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

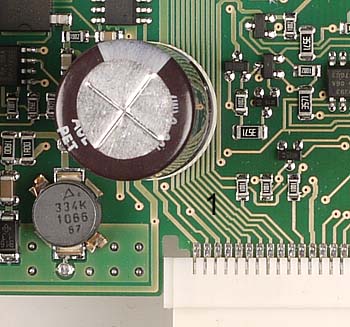

Measure for DC voltage across test point 1 PCB and
main neutral (terminal block).
Expected voltage 5 Vdc.
main neutral (terminal block).
Expected voltage 5 Vdc.

Isolate as per TOPs P4
and refit as necessary
