Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Measurement:

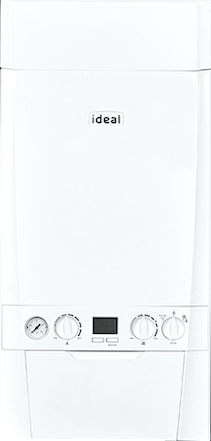

To remove the front cover from the Ideal Logic Code Combi:

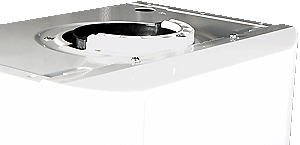

1. Locate and remove 2 screws from the top of the heat recovery cover and remove it.
2. Locate and loosen the two screws at the bottom of the boiler.
3. Disengage the two spring clips at the lower corners of the front case.
4. Pull the front case slightly forward from the bottom and lift to unhook from the top.
NOTE:
For correct use of this diagnostic model the Pre-heat function needs to be disabled by pressing the preheat so that "Hot water preheat off" is shown in the display . If the preheat button is blanked out then appliance does not have a pre-heat function.
This model assumes appliance is operating on natural gas. If it has been converted to LPG refer to ADAPT for gas pressures and potential differences in part numbers.
1. Locate and remove 2 screws from the top of the heat recovery cover and remove it.
2. Locate and loosen the two screws at the bottom of the boiler.
3. Disengage the two spring clips at the lower corners of the front case.
4. Pull the front case slightly forward from the bottom and lift to unhook from the top.
NOTE:
For correct use of this diagnostic model the Pre-heat function needs to be disabled by pressing the preheat so that "Hot water preheat off" is shown in the display . If the preheat button is blanked out then appliance does not have a pre-heat function.
This model assumes appliance is operating on natural gas. If it has been converted to LPG refer to ADAPT for gas pressures and potential differences in part numbers.
