Set Appliance State:

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On

Observation:

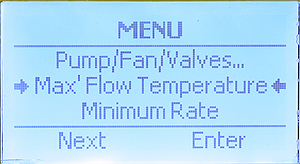

  • At the default screen press the "Menu" button
    to enter the installer menu. (1)
  • Press the "Next" button (2) repeatedly until arrows are next to "Max' Flow Temperature" (3) then press "Enter" button to view temperature setting.

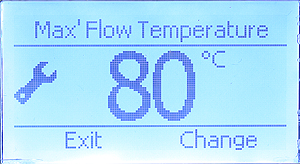

  • Maximum flow temperature shown.
    Adjust by required pressing the "Change" button. (4)
    Once complete press the exit button
    to return to the default screen.
    Repeat the process for "Outside Sensor Slope" setting.
    Default slope setting is 17. Higher values will
    result in higher boiler flow temperatures.
