XSol Diagnostic System

RESISTANCE FAN CONTROL HARNESS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove connector from fan assembly and
X8 connector from PCB

Measurement:

Measure the resistance of each wire in the fan harness.
Expected resistance continuity (zero resistance).

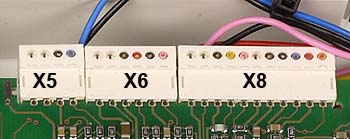

id i35 pcb x5 x6 x3.jpg

id i35 lower inner pcb.gif

id i35 fan connector control.jpg

id i35 x8 connector.gif

id i35 fan conn removed .gif

@highlight circle05.gif











X8

1

11
