Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
CH temperature control set to MAX
Attach temperature clamps to the flow pipe under the boiler (left pipe)
Attach temperature clamps to the flow pipe under the boiler (left pipe)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Allow appliance to run for CH demand.

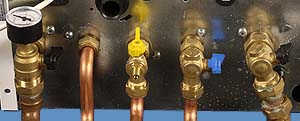

Place a temperature probes on the plastic manifold of the return
pipe(as shown in the picture) to measure the temperature.
Does the return pipe show a higher temperature
than the flow pipe under the boiler?
Note:
Use probe instead of clamp as flow pipe is not earthed which can cause incorrect readings with the Sprint V3 FGA. Click HERE for more information.
Place a temperature probes on the plastic manifold of the return
pipe(as shown in the picture) to measure the temperature.
Does the return pipe show a higher temperature
than the flow pipe under the boiler?
Note:
Use probe instead of clamp as flow pipe is not earthed which can cause incorrect readings with the Sprint V3 FGA. Click HERE for more information.
