Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

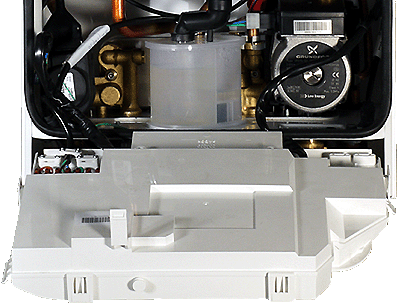

Unclip and remove the diverter valve actuator from the diverter valve body
Observation:
Check the diverter valve spindle for free movement.
It should be possible to depress the diverter valve spindle by finger pressure.
The CH position of the valve is when the spindle is pushed in.
It should be possible to depress the diverter valve spindle by finger pressure.
The CH position of the valve is when the spindle is pushed in.
Isolate as per TOPs P4
and refit as necessary
