Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Disconnect the Connector from the Fan

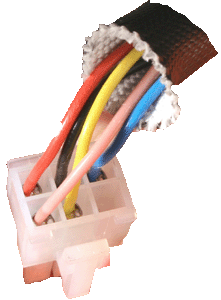

Disconnect the Fan harness connector from the PCB
Disconnect the Fan harness connector from the PCB
Measurement:
Measure the resistance of each of the wires in the harness From the PCB connector to the Fan connector.
Red to Red
Black to Black
Yellow to Yellow
Pink to Pink
Blue to Blue
Expect zero resistance or continuity for each wire in the harness.
Also inspect the harness visually.
Red to Red
Black to Black
Yellow to Yellow
Pink to Pink
Blue to Blue
Expect zero resistance or continuity for each wire in the harness.
Also inspect the harness visually.

Isolate as per TOPs P4
and refit as necessary
