RESISTANCE ELECTRODE SPARK HARNESS
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance

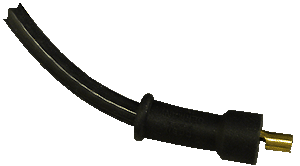

Disconnect both ends of the spark (HT) lead
Measurement:
Thoroughly check the HT lead for signs of damage, carry out a resistance check on the lead.
ELECTRODE LEAD CONDITION SATISFACTORY/ RESISTANCE SHORT CIRCUIT
ELECTRODE LEAD UNSATISFACTORY/ RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
