Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Remove ignition electrode from its housing
Measurement:
Test 1:
Check the ignition electrode gap at the tips of the electrode.
Gap between the electrode tips should be 3mm +2mm/-0mm.
Test 2:

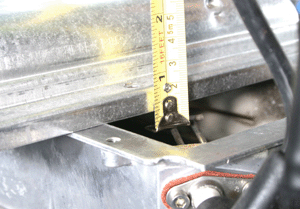

Check the gap between burner and electrode. This necessitates
burner removal, then by turning the burner and using it as a
straight edge a measurement can be made. The gap between
the straight edge and the electrode should be 11mm +0mm/- 4mm.
Test 3:
Inspect the electrode visually, it should be clean and free from corrosion.
Note:
Before reassembly check the integrity of all disturbed gaskets and seals and replace as necessary.
Check the ignition electrode gap at the tips of the electrode.
Gap between the electrode tips should be 3mm +2mm/-0mm.
Test 2:
Check the gap between burner and electrode. This necessitates
burner removal, then by turning the burner and using it as a
straight edge a measurement can be made. The gap between
the straight edge and the electrode should be 11mm +0mm/- 4mm.
Test 3:
Inspect the electrode visually, it should be clean and free from corrosion.
Note:
Before reassembly check the integrity of all disturbed gaskets and seals and replace as necessary.
Isolate as per TOPs P4
and refit as necessary
