Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance

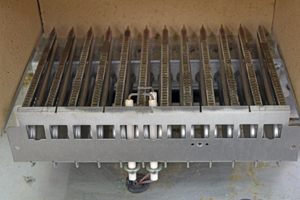

Gain access to burner
Measurement:
Inspect the two spark electrode for any signs of damage, cracks to the ceramic or build-up of debris.
Check the gap between the two electrode tips is approximately 4mm and the gap between the spark electrodes and the burner is approximately 10mm.
Carry out a resistance check between the tip of the
each spark electrode to its inline connector.
Resistance should be short circuit (zero resistance).
Check the gap between the two electrode tips is approximately 4mm and the gap between the spark electrodes and the burner is approximately 10mm.
Carry out a resistance check between the tip of the
each spark electrode to its inline connector.
Resistance should be short circuit (zero resistance).
