Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap ON

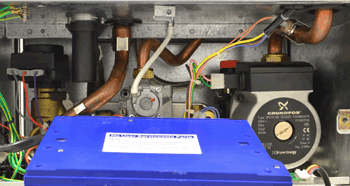

Attach temperature clamps to flow and return pipes as indicated by the red arrows
Attach temperature clamps to flow and return pipes as indicated by the red arrows
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow the appliance to fire and run in DHW mode for a couple of minutes.
Measure the temperature differential between the flow and return pipes.
Expect a temperature differential of 25°C or less.
Note:
Ensure a good contact is made with the flow and return pipes with the temperature clamps to avoid an inaccurate reading.
Measure the temperature differential between the flow and return pipes.
Expect a temperature differential of 25°C or less.
Note:
Ensure a good contact is made with the flow and return pipes with the temperature clamps to avoid an inaccurate reading.
