FUSE F1 PCB
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance

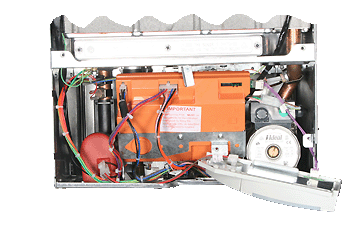

Remove fuse F1 from the control box
Measurement:
Measure resistance of the fuse.
Replace fuse after test.
SHORT CIRCUIT MEASURED
OPEN CIRCUIT MEASURED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
