Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

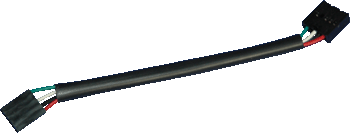

Remove clock harness from PCB
Measurement:
Check for continuity (zero resistance) between the ends of each of the 4 wires (red, black, white and green) of the harness.
Check the harness fits securely to the clock, is orientated correctly (green wire at the top) and is in good overall condition.
Check the harness fits securely to the clock, is orientated correctly (green wire at the top) and is in good overall condition.

Isolate as per TOPs P4
and refit as necessary
