XSol Diagnostic System

RESISTANCE SENSOR DHW

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Disconnect connector from the DHW thermistor (red wires)

Measurement:

Measure the resistance between the two pins of the thermistor.
Resistance should conform approximately to the table below

id mini c24 he pcb exposed.gif

id mini c24 he 164026 thm dhw wires disc.gif




Note:

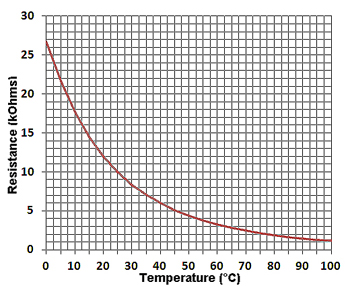

Clicking on the resistance table will switch between table and graph view.

Temperature Range (°C)	Resistance Range
0°C to 10°C	27.0kΩ - 18.0kΩ
10°C to 20°C	18.0kΩ - 12.0kΩ
20°C to 30°C	12.0kΩ - 8.4kΩ
30°C to 40°C	8.4kΩ - 6.0kΩ
40°C to 50°C	6.0kΩ - 4.4kΩ
50°C to 60°C	4.4kΩ - 3.2kΩ
60°C to 70°C	3.2kΩ - 2.4kΩ
70°C to 80°C	2.4kΩ - 1.9kΩ
80°C to 90°C	1.9kΩ - 1.5kΩ
90°C to 100°C	1.5kΩ - 1.2kΩ
