DHW SENSOR RESISTANCE

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove connector marked CON2 from PCB 40

Measure resistance across the grey leads at the right of the plug that are connected to the sensor.

Resistances vary with temperature and should conform approximately to the table below:

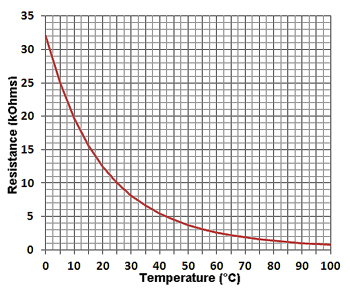

Note: Clicking on the resistance table will switch between table and graph view.
