Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
G.C. Number 47 348 01
Front panel removal

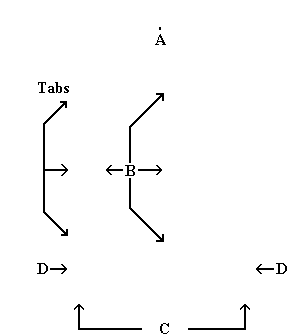

Slacken the screw (A) located at the centre top of the boiler and lift off the front panel.
Inner panel removal
Remove the 4 screws (B) and pull out the tabs from the slots.
Control panel removal
Slacken the two screws located at the underside of the boiler (C) and remove the two screws on the sides of the boiler (D).
Front panel removal
Slacken the screw (A) located at the centre top of the boiler and lift off the front panel.
Inner panel removal
Remove the 4 screws (B) and pull out the tabs from the slots.
Control panel removal
Slacken the two screws located at the underside of the boiler (C) and remove the two screws on the sides of the boiler (D).
Isolate as per TOPs P4
and refit as necessary
