Set Appliance State:

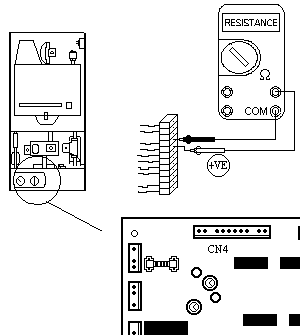

Set Multimeter to Resistance Set meter to measure resistance
Isolate Mains Power to appliance as per TOPs P4
Unplug connector CN4 from the Main Control PCB

Measurement:

Ensure the HW Tap is Off.
Check for open circuit resistance across the DHW Flow Switch (both Red wires on the unplugged connector CN4).
