Set Appliance State:

Set Multimeter to Resistance Set meter to measure resistance
Isolate Mains Power to appliance as per TOPs P4
Remove connector CN6 from the Main Control PCB.

Measurement:

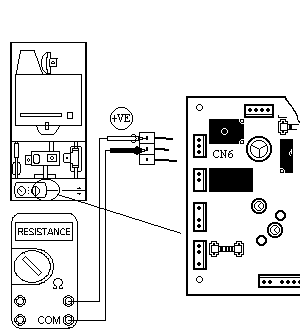

Measure short circuit resistance across the APS NC (Red Wire) and APS C (Violet wire) connections on the unplugged connector CN6.
