Set Appliance State:
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
CH Selector Switch OFF
Gas Control Knob in Main Burner position

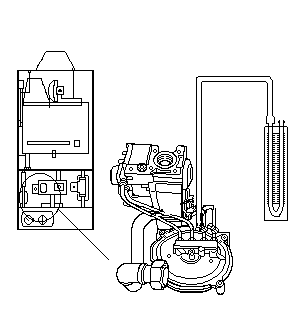

Attach a U Gauge to the Venturi Air Signal Test Point at the Gas/Air Ratio Unit Pipe
CH Selector Switch OFF
Gas Control Knob in Main Burner position
Attach a U Gauge to the Venturi Air Signal Test Point at the Gas/Air Ratio Unit Pipe
Gas On; Pilot On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
With the DHW tap fully open, does the U Gauge indicate the air pressure at approximately 2.5 mb?
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
