FUSE FS1
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Gain access to PCB (use Insulation Mat as required)
Measurement:

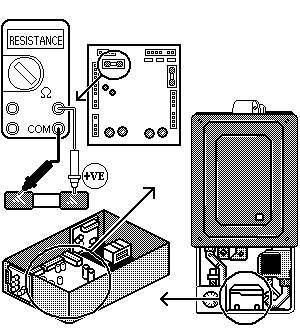

Remove Fuse FS1 from Control Board and check the resistance is a short circuit.
SHORT CIRCUIT
OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
